N.G.T.E. Pyestock

Early engine testing procedures

These photographs are likely to date from 1952 but could be as late as 1955.
Proteus engineAvon turbine

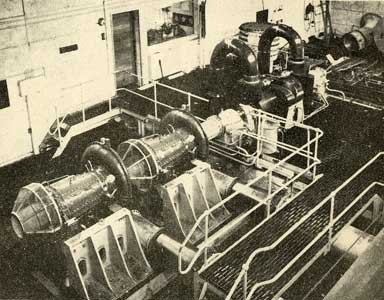

Left : “Testing a compressor, in this case a Proteus unit, driven by an independent source of power”.

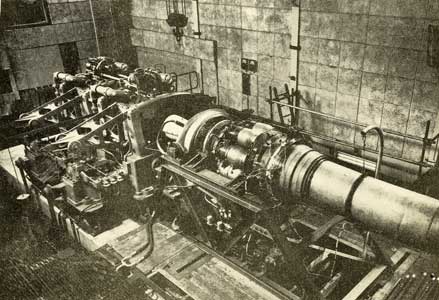

Right : “An Avon turbine on test at N.G.T.E.; fed by hot or cold air from a plant compressor, its power output is measured on a dynamometer”.
Ashton testbed

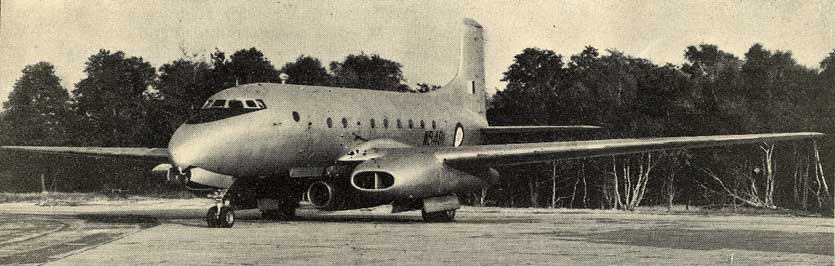

“Engine performance estimates derived from component tests are checked by installing a complete engine in a flying testbed. Here a Conway bypass turbojet is mounted below the belly of an Ashton flying testbed”.
